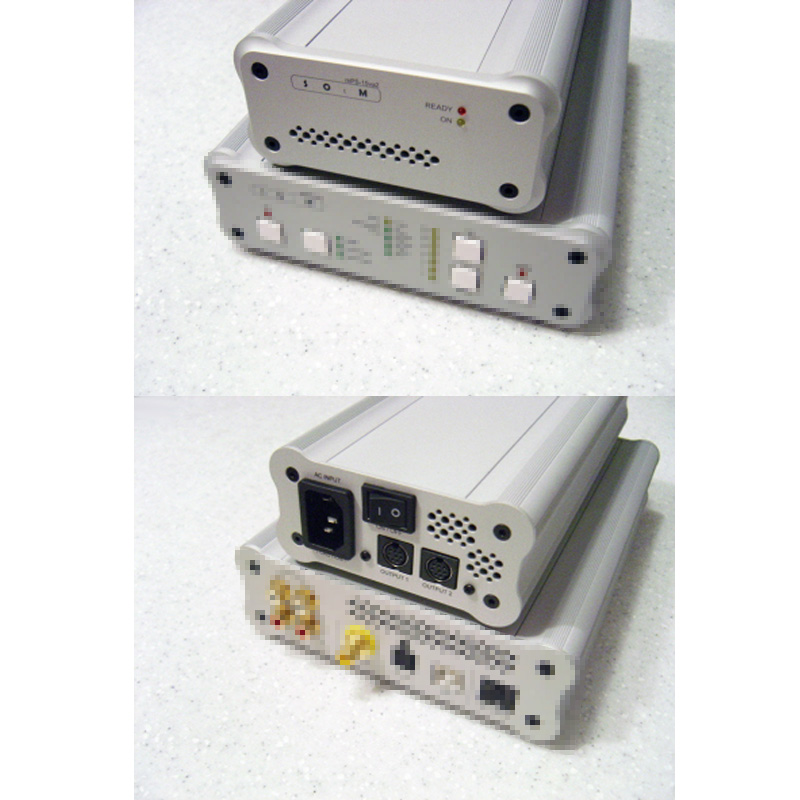

mPS-15va2
Specification
Input
Rated input voltage : 220Vac/ 60Hz, 120Vac/ 60Hz
Rated input power : 15VA
Operating voltage range : (Contact us for other spec.)
100VAC ~ 120Vac / 50 or 60Hz
210VAC ~ 230Vac / 50 or 60Hz
AC line filter & Fuse
IEC AC inlet
Output
System control power output(always on) : +5Vdc
Analog power output(On/Off control)
+10Vdc(7v, 9v version available)
-10Vdc(-7v, -9v version available)
Output current limit(Total 15VA max)
+5Vdc : 1A
+10Vdc : 1A
-10Vdc : 1A
Voltage tolerance : 10%
Current tolerance : 10%(Temp : 20deg)
miniDIN 8pin connector
Control signal
On/Off control input
Remote power on/off I/O
Power exist check
Indicate LED
Power ready LED x 1
On/Off LED x 1
Power Regulation circuit
Ultra low noise regulator circuit for analog power output
3 terminal regulator for system control power output
Component
PPS film chip capacitor for audio and power circuit
Tyco PolySwitch for over current protection
Littlefuse Slo-Blo fuse & Beryllium copper fuse holder for input protection
ALPS power switch
Schurter IEC AC inlet
Slim type transformer
Dimension
106 x 48 x 230(mm)
Weight
2Kg >
