dAC-200HD

Clear

dAC-200 HD is the 32bit D/A converter for the middle high class audiophiles, it consists of AES/EBU, coaxial inputs to use with any digital source devices as a CD, DVD player or TV and has USB audio class 2.0 interface to use with PC.
To enhance and rich your sound quality, the sCLK-2224 can be installed as an optional and the 32bit SRC(Sample Rate Converter) is applied. Please check the information about sCLK-2224 here, sCLK-2224 is the most important part to transform sound to be much more dynamic and natural with the wide bandwidth. The SRC is good to use with not only DVD, TV which are having a possibility to make sound improvement a lot but also the high performance audio source since the SRC outputs the same 32bit as DAC chip, so this procedure changes sound to be wider and dynamic range.
The DAC chip is the voltage output type which is not the same one as the current output type, this type of output make reduces coloring sound and the ultra low noise analog output circuit which is consists of Passive L-C filter and the balance circuit support up to 100KHz bandwidth which is compatible with 192KHz completely.
For the purest power, the power noise filter, Dual power transformer and ULNR(Ultra Low Noise Regulator) are applied. The power noise filter blocks high frequency noise from the power and the power transformer maximizes the sound quality by applied separately for analog and digital circuit.
Also the balance of ULJC, the best specified electrolytic condenser for audio and the polymer condenser reduces noise entirely and helps realizing the high resolution sound.

Specification

Digital Audio Input
  USB input
    USB 2.0 high speed
    USB audio class 2.0
    44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz sampling rate
    Max 24bit PCM audio data.
    Sampling rate auto detect and display
    Asynchronous isochronous mode operation
    Bit-transparent operation
    Windows XP with SP3 (32 bit), Windows Vista with SP2 (32 bit), Windows Vista x64 with SP2 (64 bit), Windows 7 (32 bit), Windows 7 x64 (64 bit), Mac OS-X snow leopard, Linux

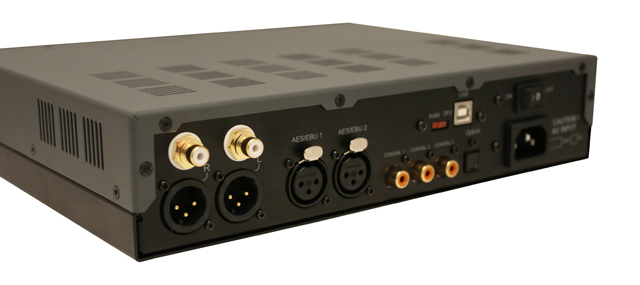

  AES/EBU, Coaxial, Optical input
    AES, S/PDIF data format compatible
    32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz sampling rate
    Max 24bit PCM audio data
    Auto enable de-Emphasis filter for 32KHz, 44.1KHz, 48KHz sampling rate
Line output stage
  Full balance output stage
  Stereo balance x 1 and unbalance output x1
  Passive L-C low pass filter
  Wide range frequency response : 10Hz~100KHz(-3dB)
  SNR : -100dB >
  THD+N : -100dB >

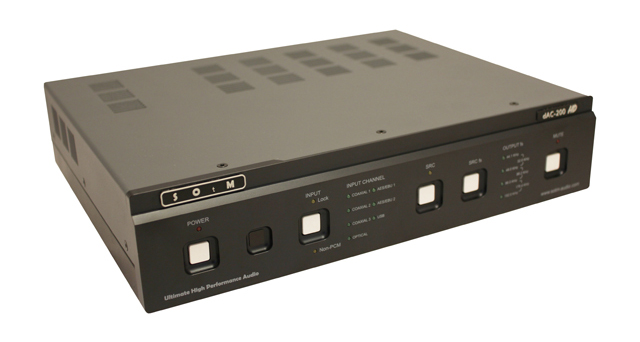

User control input
  Power on/off
  Input select
  SRC on/off
  SRC fs select
  Mute on/off
  Indicate LED
  Power status x 1
  Input channel x 7
  Non-PCM status x 1
  SRC on/off x 1
  SRC fs status x 4
  Mute status x 1
Power circuit
  Ultra low noise regulator circuit for all digitral and analog circuit
  Split winding dual power transformer
Component
  AK4115VQ for digital audio interface
  AK4390EF for audio DAC
  XS1-L1 for USB interface
  OPA2228 for audio output stage
  Flat chip audio grade resistor
  PPS film chip capacitor
  SILMIC II audio grade electrolytic capacitor
  Polymer conductive capacitor
  Full size AT-Cut low jitter oscillator
  ALPS high quality long life switch
