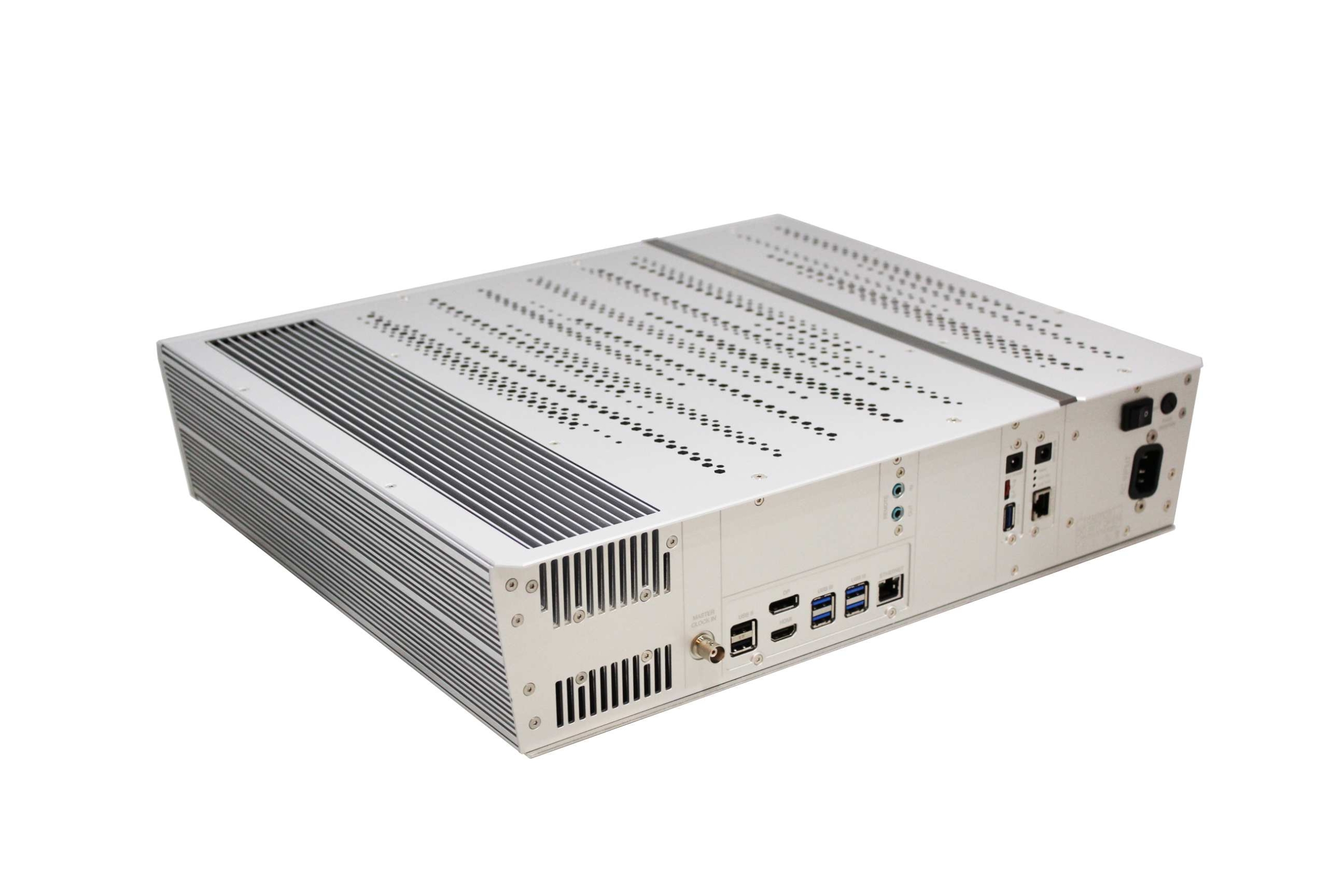

sMS-2000

 The sMS-2000 mock up will be revealed for the first time through High End Munich 2024 finally, this mockup will be available at Atrium 4.2 room F217 with an incredible team of Egglestonworks, J.Sikora Turntables Doshi Audio and SOtM.

 The sMS-2000 is the new generation of network music server and player based on SOtM’s remarkable PC audio components, sMB-Q370, tX-USBx10G and sNI-1G clocked by sCLK-EX.

 Come and enjoy the time in Munich with us, more information about the sMS-2000 will be kept updated.

Key Feature

  • The world best user proven high end audio grade components.

– Eunhasu OS
– sMB-Q370 motherboard
– sCLK-EX clock module
– tX-USBx10G USB host card
– sNI-1G Ethernet card

  • Custom designed high end audio grade power supply.

– sPM-ACDC100 for AC-DC conversion
– sPM-ATX100 for DC-DC conversion(ATX power supply)

  • Support 48TB or higher storage capacity.
  • Support various audio players.

Review

Specification

OS
Linux(User proven high end audio grade Eunhasu OS)
Audio player
Roon Server
DLNA audio renderer, OpenHome support
Music Player Daemon(MPD)
Logitech Media Server(LMS)
Squeezelite
Shairport-sync

LibreSpot
MinimServer
BubbleUPnP Server
Automatic CD ripper(External CD driver required)
HQplayer Network Audio Adapter
HQplayer Embedded will be added
Diretta protocol will be added

Motherboard
The world best high end audio grade motherboad(sMB-Q370)
Intel i7-9700 processor(support 9th and 8th gen Intel Core processor)
Synchronized by external 10MHz master clock
PCIe 3.0 x16, x4, x1 slot
2 x M.2 M key 2280 connector
2 x M.2 E key 2230 connector
6 x SATA 6Gbps port
1 x Display port, 1 x HDMI port
4 x USB 3.1 gen 2, 2 x USB 2.0 port
1 x ethernet port
Extra large passive CPU heat sink with flat heat pipe

Audio clock
The world best high end audio clock installed(sCLK-EX)
Ultra Low Noise Regulator
Active noise canceller circuit
50 ohm(or 75 ohm) BNC connector for master clock input

High end audio grade USB output
The world best high end USB host card installed(tX-USBx10G)
Support USB 3.1 gen 2 port
External type A and internal type E connector
External power input jack
USB power on/off switch
USB audio class 2.0 support

Network interface
The world best high end Ethernet card installed(sNI-1G)
External power input jack
Extra on motherboard Ethernet port
All Ethernet port support WOL(Wake On Lan)
Synchronized by external 10MHz master clock

High end audio grade power supply
AC-DC converter(sPM-ACDC100)
Phase shifted full bridge topology
Active PFC circuit
Superior second stage ripple noise filter
OVP, UVP, Short circuit protection
Pre-charge circuit to eliminate inrush current
Large 16000uF capacitor for stable and low noise
AC input voltage range: 100Vac ~ 240Vac
Frequency : 50Hz / 60Hz
Current : maximum 8A
DC-DC converter(sPM-ATX100)
Synchronous buck topology
Superior second stage ripple noise filter on each output
ATX power supply compatible
OVP, UVP, OTP, Short circuit protection
All power supply synchronized by one clock source

Storage
512GB M.2 SSD for OS(up to 4TB by upgrade)
One more M.2 SSD can be installed
Maximum 6 SATA SSD can be installed

Operating environment
Operating temperature : +-0 ~ +30℃
Storage temperature : 0 ~ +40℃
Operating & storage humidity : 10% ~ 90%
Dimension
445mm x 394mm x 115mm
Weight
10Kg(TBD) >
